Composite Geomembrane

Composite Geomembrane

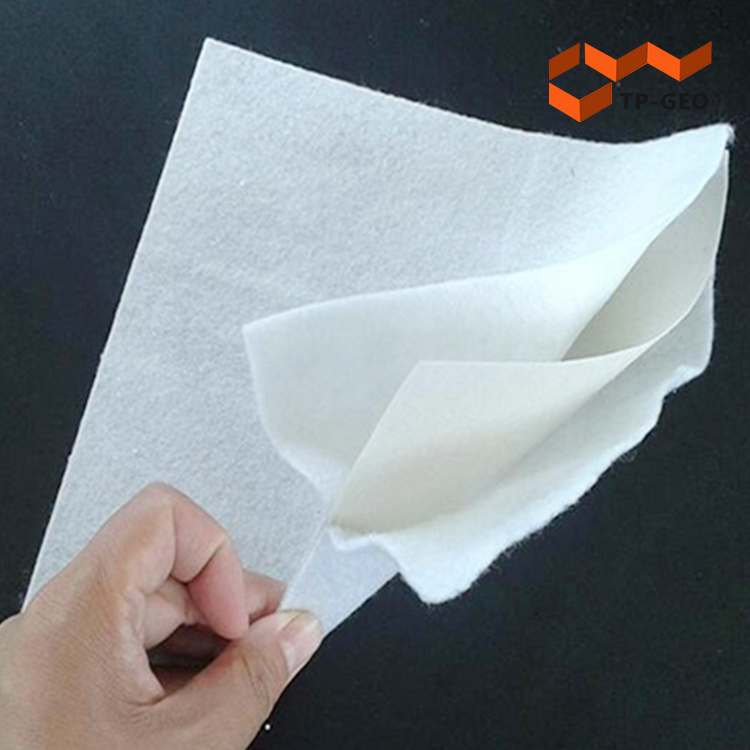

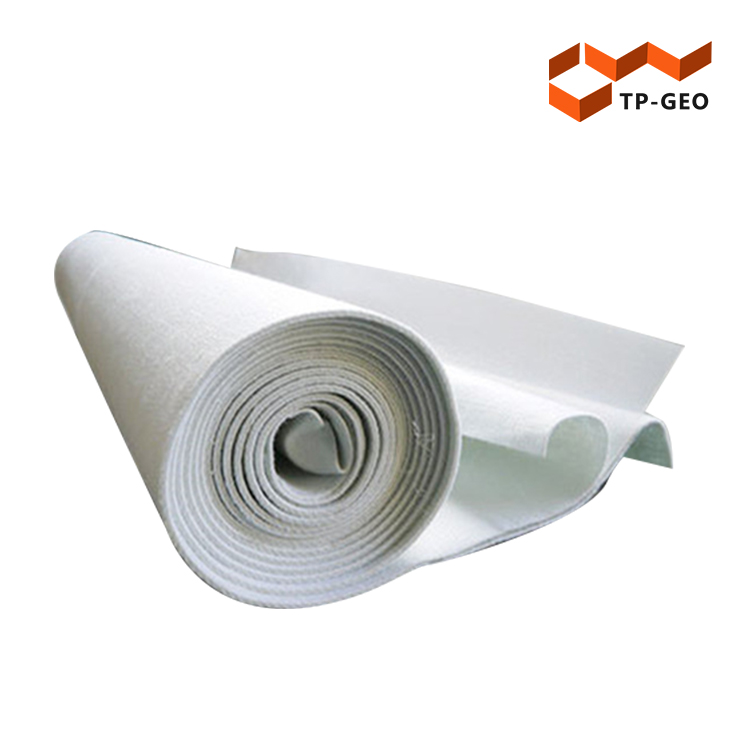

Composite geomembrane using polyethylene raw materials and filament non-woven fabric/staple fiber non-woven fabric/woven fabric through advanced equipment tightly composite, in addition to geomembrane leakage, good sealing, corrosion resistance, acid and alkali resistance, anti-aging properties, while with geotextile protection, drainage, isolation, reinforcement functions. The two cloth and one film structure can reduce the thickness of the supporting layer and the protective layer in the engineering impermeable structure, enhance the tensile and shear strength of the impermeable main body and effectively reduce the cost.

// APPLICATION SCENARIO //

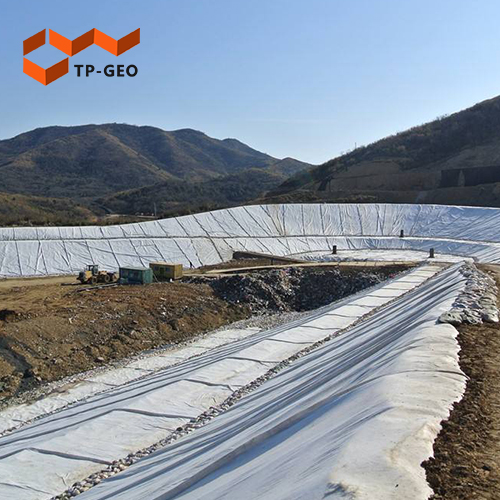

Landfill LinersSoil RemediationIrrigation Ponds, Canals & Ditches
Tank LiningsMining-Heap Leach & Slag TailingsWastewater Treatment

// PRODUCT PARAMETER //

Item

Index

Mass per unit areag/m2

400

500

600

700

800

900

1000

Film thicknessmm

0.25-0.35

0.3-0.5

Breaking strengthkn/m

5.0

7.5

10.0

12.0

14.0

16.0

18.0

Elongation at break%

30-100

CBR Bursting strength

1.1

1.5

1.9

2.2

2.5

2.8

3.0

Tearing strengthN/CM

≥6

Hydrostatic pressure resistance

Film thicknessmm

0.2

0.3

0.4

0.5

0.6

0.7

0.8

One piece of cloth and one film (Mpa)

0.4

0.5

0.6

0.8

1.0

1.2

1.4

Two cloth and one film (Mpa)

0.5

0.6

0.8

1.0

1.2

1.4

1.6

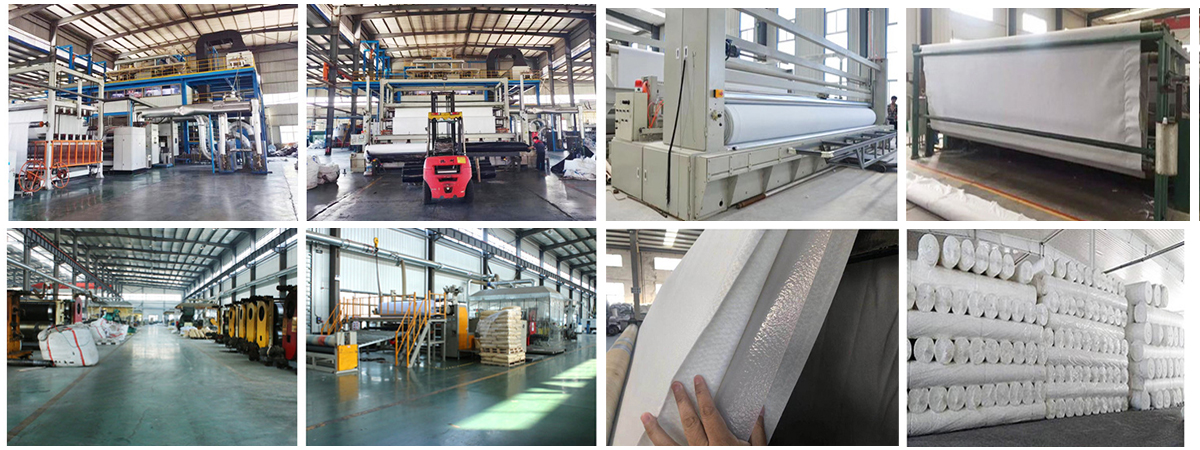

// EQUIPMENT //

未标题-3.jpg// LABORATORY //未标题-1.jpg// HONOR  //3.jpg// PROJECT ENGINEERING //未标题-2.jpg


Engineering case

Supply product

1

Coal power project ash landfill project

1.0mm HDPE Geomembranes

2

Potassium salt seepage control system engineering

1.0mm HDPE Geomembranes

3

Smelter industrial waste water tank seepage prevention project

2.0mm HDPE Geomembranes

4

Chemical gypsum slag field seepage prevention project

1.5mm HDPE Geomembranes

5

Calcium free chromium residue wet detoxification and chromium recovery project

2.0mm HDPE Geomembranes

6

Urban waste comprehensive treatment site upgrade project

1.0mm HDPE Geomembranes

7

Solid waste disposal center safe landfill site

1.5mm2.0mm HDPE Geomembranes

8

Sewage diversion and biogas diversion project of domestic waste landfill

2.0mm HDPE Geomembranes

9

Industrial solid waste disposal center project

2.0mm HDPE Geomembranes

10

Livestock and poultry waste disposal and utilization project top membrane project

1.0mm HDPE Geomembranes

11

Heavy metal waste resource harmless disposal project rigid landfill project

2.0mm HDPE Geomembranes

12

Power plant dust ash landfill project

1.0mm1.5mm HDPE Geomembranes

13

Solid waste ash project in landfill reservoir area

1.0mm1.5mm HDPE Geomembranes

14

landfill storage pool covering project

2.0mm HDPE Geomembranes

15

Emergency landfill project Geotechnical material laying project in the second landfill area

1.5mm 2.5mm HDPE Geomembranes

The project is constantly updated
